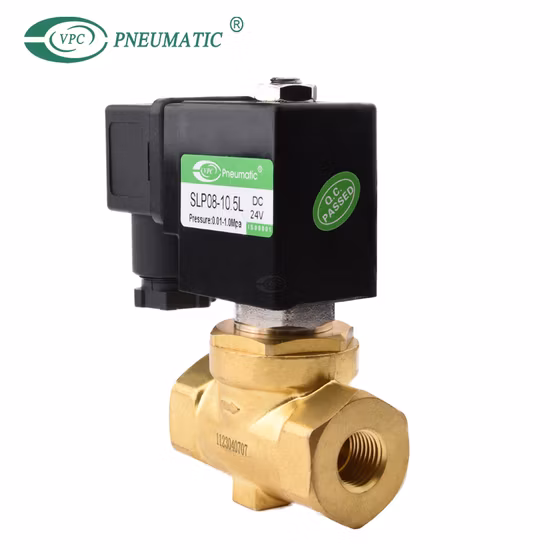

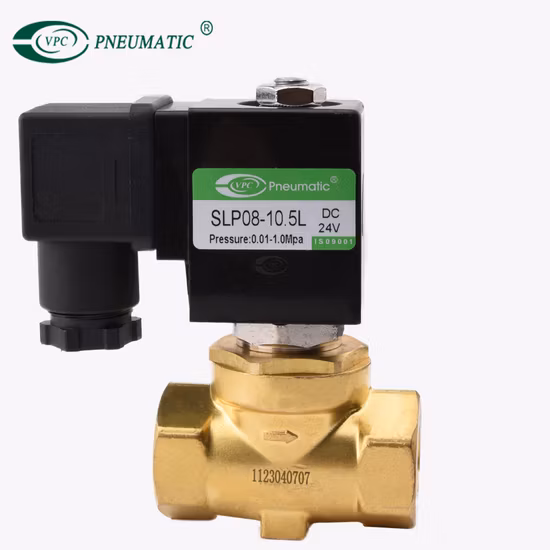

Slp Series Small Diameter 2/2 Way Normal Close Solenoid Valve
Description
Basic Info.
| Model NO. | SLP08-10.5L DC24V |
| Pressure | Mediun Pressure |
| Valve Structure | Direct Action Diaphragm Structure |
| Power Supply | AC, DC |
| Usage | Drain, Flow Control |
| Standard | DIN |
| Application | Industrial Usage, Water Industrial Usage |
| Seal Material | NBR, EPDM, Viton |
| Ambient Temperature | 0~65ºC |
| Body Material | Brass, SS316 |
| Control Style | Normal Close |
| Transport Package | Carton |
| Specification | CE, ROHS, SGS. ISO9001 |
| Trademark | vpc |
| Origin | China |
| HS Code | 8481802190 |
| Production Capacity | 500000000PCS/Year |
Product Description
Product Specifications
SLP Series Small Diameter 2/2 Way Normal Close Solenoid Valve
Feature
SLP series solenoid valves support high working pressure 16bar, which is much higher than normal 8bar. From 1/8" to 4", SLP series solenoid valves now has a complete range of sizes for your options, including brass valve and stainless steel valve, both of SS valve and brass valve can be normal close valve and normal open valve, with NBR seal, EPDM seal and VITON seal, applicable for many kind of medium like air, gas, water, hot water, liquid, etc. According to different industry demand, the SLP series solenoid valve provides 10 different voltage coils for your use. Very popular around the world wide fluid control system, especially the low power solenoid valve with only 2~8 Watt, which gives the only solution for big overheat problem of solenoid valves at much lower temperature, longer life cycle, faster response, more safety use.Detailed Photos
Product Specification
| Working Medium | Air,Gas,Water,Oil |
| Type | Normal close |
| Ambient temperature | 0 to 65ºC |
| Working temperature | 0 to 130ºC |
| Seal material | NBR,EPDM,VITON |
| Body material | Brass,SS316 |
Mounting | Direction of flow as the arrow,install in any position,but the best position is solenoid coil upright,horizontal direction in stallation for enhancing the service life. |
How To Order
06→Joint Size
06:1/8
08:1/4
10:3/8
15:1/220:3/425:135:1-1/440:1-1/250:2F:With Flange
()→Sales
Blank:NBRV:VITONE:EPDM10L→Orifice
1L:1.01.5L:1.52.5L:2.53L:3.04L:4.05L:5.06L:6.010L:10.010.5L:10.513L:13.020L:20.025L:25.035L:35.040L:40.050L:50.0()→Valve BodyBlank:BrassS:SS316()→Control StyleBlank: Normal CloseH:Normal OpenAC220V→Standard VoltageDC12VDC24VAC110VAC220V
Product Parameters
Company Profile
VPC company,which was founded in 1985,as a leading manufacturer,is dedicated to serve the automation and labor saving requirements with our pneumatic product range.
Above,coupled with close connection with customers'requirements,enable us to manufacture and make good valve,high quality products and to operate successfully around the world.As natural result of such policy VPC has be recognized to be in compliance with the requirements as provided for the quality system standard ISO 9001:2000,as well as the CE Certificate,which is the first pneumatic enterprise who get both certificates in Ningbo,China.
VPC bulit an excellent sales team is talking advantage of a widespread net of local and foreign distributorsin constant expansion in the main worldwide strategic areas.We believe the diversity of our product line,and the sincere work of our staff will make VPC to be world class performance leaders of pneumatic products.
FAQ
Q1:What is your quality assurance?
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.Q5:How about the warranty?
A: All of our products will be guaranteed 1 year warranty.
